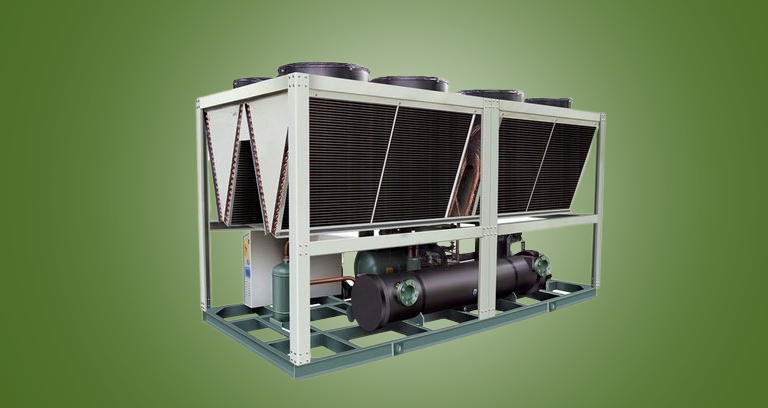

Hard Anodizing Chilling Plant
We are the suppliers & import of high-quality Water Chillers & Industrial water chillers from India. Our Water Chillers are designed following international standards. It is manufactured using renowned scroll compressors make available from Danfoss Maneurop and Copeland. The design of our water chiller is fully microprocessor based.
Technical specifications :
- Hard anodizing bath solution
- 1200 ltrs capacity 30% Sulphuric Acid -5°C to 0°C
- < one hour Air Cooled
- Make: Copeland/Voltas/Kirlosker/ Emerson/ Danfoss to achieve the above temperature within specified time duration (41 TR minimum)
- Temp. 45°C & RH 80% minimum Outdoor type Powder coated & Acid resistant Ethylene glycol solution 2" dia 500 ltrs minimum SS 304/304L passivated <5°C 10c1C Kirlosker/ Crompton/ Voltas Less than 75db at lmetre distance
- i)Digital temperature controller for both Anodizing solution & coolant solution temperature.
- ii) Coolant line drying sensor
- iii) Fault detection sensor a. High Pressure cutout set with display,
- b. Low Pressure cutout set with display,
- c. Antifreeze safety with display,
- d. Oil level switch,
- e. Electronic Thermistor embedded in stator coil for Motor protection,
- f. Compressor overload Trip under Voltage/ Over voltage/ Single phasing preventer/
- g. Reverse Phasing preventer,
- h. Chilled & cooled water flow switches
- i. Starter Automatic star - delta starter
